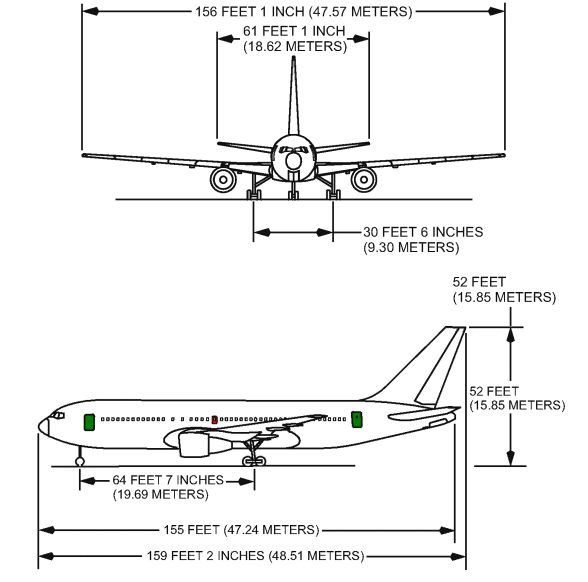

Airplane General - Dimensions

-200 -300 -300 Winglets
-200 -300 -300 Winglets

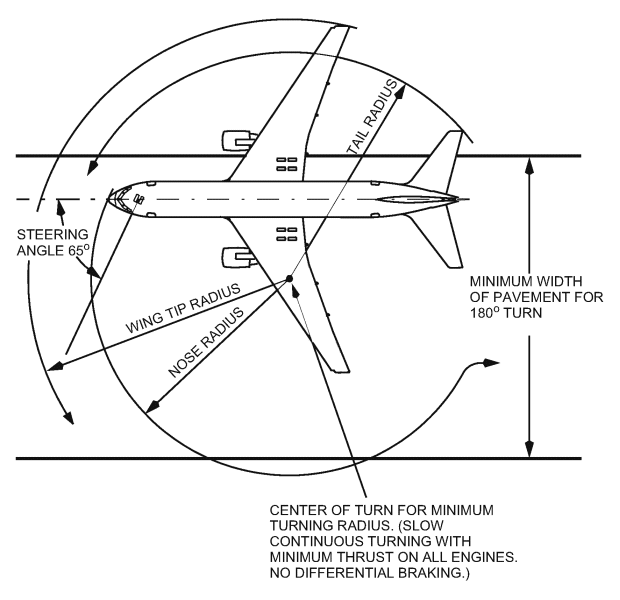

Turn Radius

-200 -300 -300 Winglets
  Nose Radius Tail Radius Wing Tip Radius Minimum width
of pavement for
180° turn:
767-200 87 ft
(26.5 m)		 101 ft
(30.8 m)		 117 ft
(35.9 m)		 129 ft
(39.3 m)
767-300 99 ft
(30.3 m)		 113 ft
(34.5 m)

123 ft
(37.6 m)

131 ft 4 in
(40.0 m)

 146 ft
(44.6 m)

CAUTION: Do not attempt to make a turn away from an obstacle within:

  Wing Tip Nose
767-200 15 ft (4.6 m) 45 ft (13.8 m)
767-300

15 ft (4.6 m)

26 ft (8.0 m)

40 ft (12.3 m)

51 ft (15.6 m)
