Airplane General - Dimensions

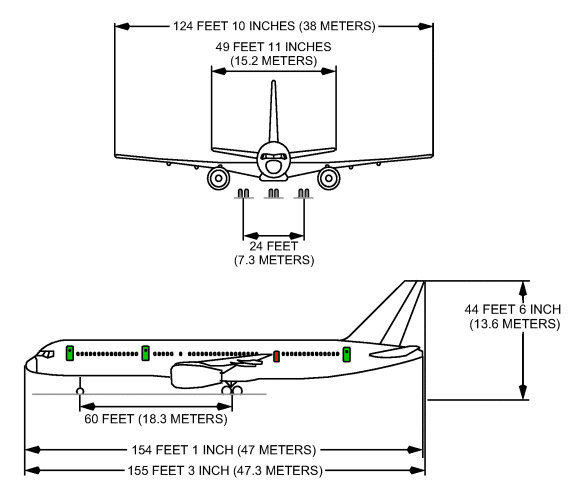

Dimensions 200.

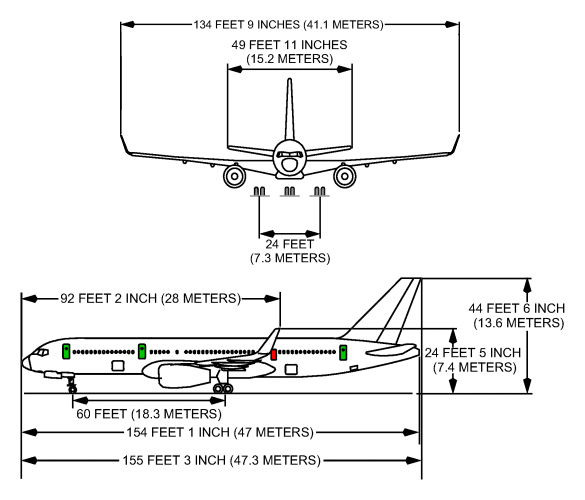

Dimensions 200 Winglets.

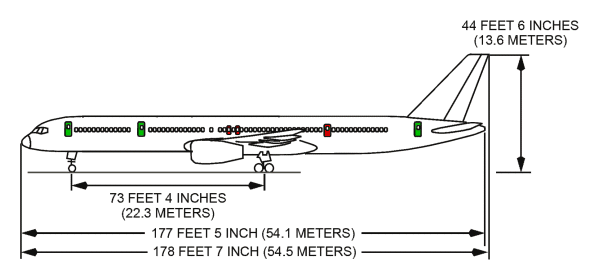

Dimensions 300.

  757-200 757-300
Span

124 ft 10 in (38.0 m)

134 ft 7 in (41.0 m)
Length 155 ft 3 in
(47.3 m)		 178 ft 7 in
(54.5 m)
Height 44 ft 6 in (13.6 m)
Undercarriage
width		 24 ft (7.3 m)

Turn Radius

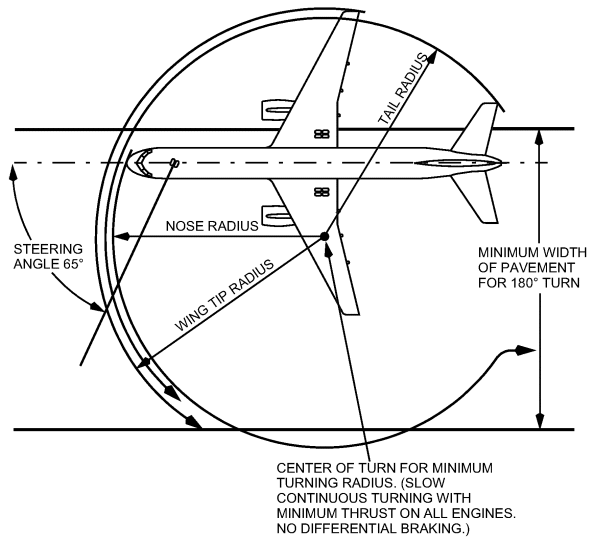

Turning Radius 200.

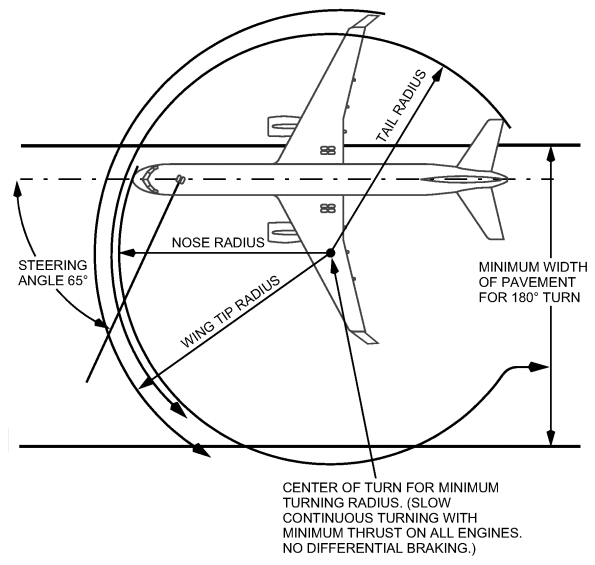

Turning Radius 200 Winglets.

The wing tip of the 757-200 swings the largest arc while turning and determine the minimum obstruction clearance path. All other portions of the airplane structure remain within these arcs.

The tail of the 757-300 swings the largest arc while turning and determine the minimum obstruction clearance path. All other portions of the airplane structure remain within these arcs.

  Nose Radius Tail Radius Wing Tip Radius Minimum width of
pavement for 180° turn:
757-200 87 ft
(26.5 m)		 95 ft
(29.0 m)

98 ft
(29.9 m)

105 ft 8 in
(32.3 m)

 120 ft
(36.6 m)
757-300 102 ft
(31.1 m)		 107 ft
(32.7 m)		 106 ft
(32.3 m)		 141 ft
(43.0 m)

CAUTION: Do not attempt to make a turn away from an obstacle within:

  Wing Tip Nose
757-200

15 ft (4.6 m)

22 ft (6.7 m)

26 ft (7.9 m)

33 ft (10.6 m)
757-300

16 ft (4.9 m)

20 ft (6.1 m)
